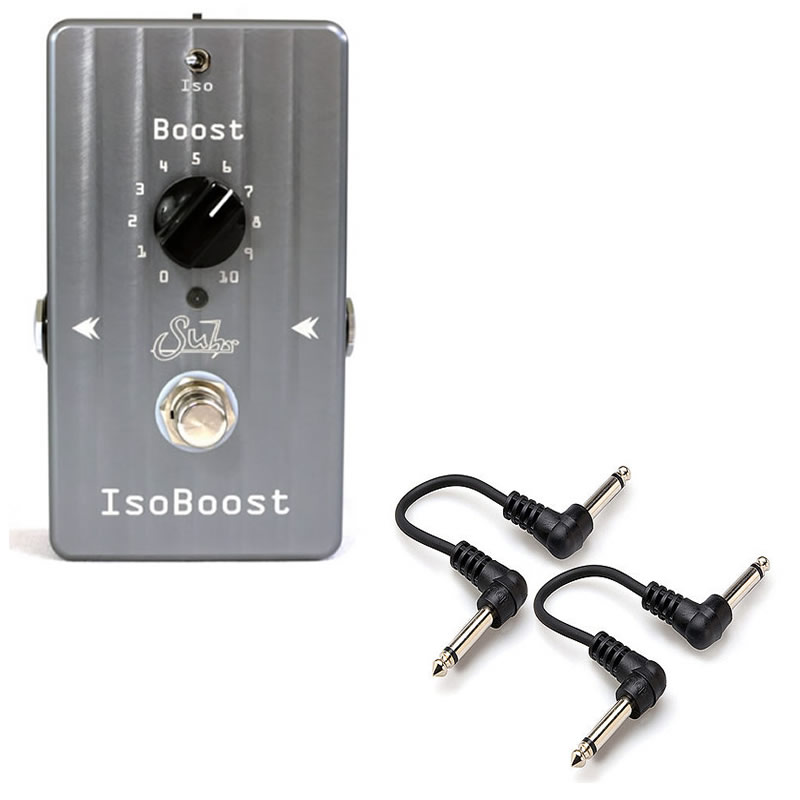

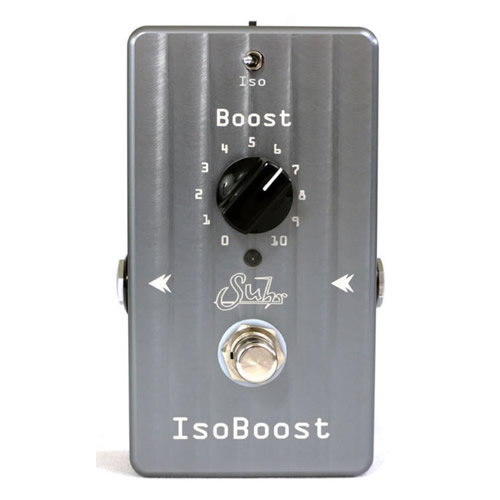

SUHR Iso Boost Pedal + 2x 6″ Patch Cables

Description

The SUHR Iso Boost solves two problems at once: it gives you a genuinely transparent gain boost for pushing your amp harder, and it acts as a buffered line driver that keeps your tone intact through sprawling pedalboards and long cable runs. Rather than coloring your signal, it simply adds headroom and drive exactly where you need it — before a clean amp, into a cranked tube head, or anywhere in the chain that’s losing clarity.

Control-wise, it’s refreshingly simple. A single Boost knob dials in gain from unity (0dB) up to +20dB, so you can go from a subtle lift to a full-on push. The two-position ISO switch is where things get clever: flip it left to engage an internal transformer that isolates your output stage, killing ground loops between amps and effects — invaluable on boards feeding multiple amps or DI’d rigs. Flip it right for a non-isolated buffered output. Either way, the pedal stays buffered at all times.

Built-in intelligence extends to power management too. A battery monitor checks voltage at startup and continuously during play, warning you before a 9V runs dry — and if it does drop too low, the pedal automatically drops into true bypass so your signal keeps moving.

• Input Impedance: 1M ohm / Output Impedance: 600 ohm / 10k ohm
• Power: 9Vdc center-negative, 2.1mm x 5.5mm; operates 4V–18V (20V max)
• Reverse battery and over-voltage protection built in
• Current draw: 8mA; battery life approx. 75–100 hours continuous use
• FxLink 1/8″ connector, max 3.3Vdc, tip-to-shield on/off activation
• Dimensions: 2.50″ W x 4.50″ D x 1.25″ H; Weight: 1 lb
• RoHS compliant

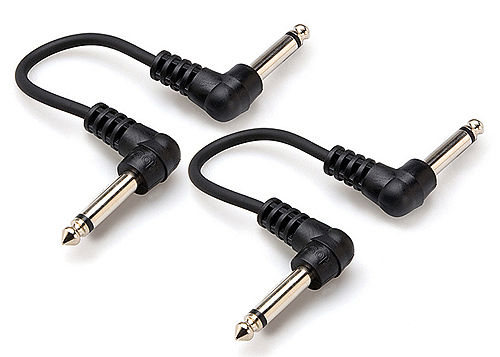

This listing includes two 6″ patch cables, ready to slot the Iso Boost straight into your existing chain.
